Windows Phone Transitions

We can use transition effectts in windows phone applications.


Step1: Create a Windows Phone 7 application project and add reference to Microsoft.Phone.Controls.Toolkit.dll.

Step2: Go to App.xaml.cs and set your application's RootFrame property to an instance of TransitionFrame (in App.InitializePhoneApplication of the App.xaml.cs) if you want to have automatically animated Page transitions:


private void InitializePhoneApplication()
{
    if (phoneApplicationInitialized)
        return;

    // Create the frame but don't set it as RootVisual yet; this allows the splash
    // screen to remain active until the application is ready to render.
    RootFrame = new TransitionFrame();
    RootFrame.Navigated += CompleteInitializePhoneApplication;

    // Handle navigation failures
    RootFrame.NavigationFailed += RootFrame_NavigationFailed;

    // Ensure we don't initialize again
    phoneApplicationInitialized = true;
}


Step3: Go to your MainPage.xaml and  add the "toolkit" prefix declaration. Make sure that your page declaration includes the "toolkit" namespace:
xmlns:toolkit="clr-namespace:Microsoft.Phone.Controls;assembly=Microsoft.Phone.Controls.Toolkit"
Next add the following code at

 MainPage.xaml


<phone:PhoneApplicationPage
    x:Class="WPtransition.MainPage"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:phone="clr-namespace:Microsoft.Phone.Controls;assembly=Microsoft.Phone"
    xmlns:shell="clr-namespace:Microsoft.Phone.Shell;assembly=Microsoft.Phone"
    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
    mc:Ignorable="d" d:DesignWidth="480" d:DesignHeight="768"
    FontFamily="{StaticResource PhoneFontFamilyNormal}"
    FontSize="{StaticResource PhoneFontSizeNormal}"
    Foreground="{StaticResource PhoneForegroundBrush}"
    SupportedOrientations="Portrait" Orientation="Portrait"
    xmlns:toolkit="clr-namespace:Microsoft.Phone.Controls;assembly=Microsoft.Phone.Controls.Toolkit"
    shell:SystemTray.IsVisible="True" >
    <!--shell:SystemTray.IsVisible="True"  Style="{StaticResource TransitionPageStyle}">-->
    <toolkit:TransitionService.NavigationInTransition>
        <toolkit:NavigationInTransition>
            <toolkit:NavigationInTransition.Backward>
                <toolkit:TurnstileTransition Mode="BackwardIn"/>
            </toolkit:NavigationInTransition.Backward>
            <toolkit:NavigationInTransition.Forward>
                <toolkit:TurnstileTransition Mode="ForwardIn"/>
            </toolkit:NavigationInTransition.Forward>
        </toolkit:NavigationInTransition>
    </toolkit:TransitionService.NavigationInTransition>
    <toolkit:TransitionService.NavigationOutTransition>
        <toolkit:NavigationOutTransition>
            <toolkit:NavigationOutTransition.Backward>
                <toolkit:TurnstileTransition Mode="BackwardOut"/>
            </toolkit:NavigationOutTransition.Backward>
            <toolkit:NavigationOutTransition.Forward>
                <toolkit:TurnstileTransition Mode="ForwardOut"/>
            </toolkit:NavigationOutTransition.Forward>
        </toolkit:NavigationOutTransition>
    </toolkit:TransitionService.NavigationOutTransition>

    <!--LayoutRoot is the root grid where all page content is placed-->
    <Grid x:Name="LayoutRoot" Background="Green">
        <Grid.RowDefinitions>
            <RowDefinition Height="Auto"/>
            <RowDefinition Height="*"/>
        </Grid.RowDefinitions>

        <!--TitlePanel contains the name of the application and page title-->
        <StackPanel x:Name="TitlePanel" Grid.Row="0" Margin="12,17,0,28">
            <TextBlock x:Name="ApplicationTitle" Text="MY APPLICATION" Style="{StaticResource PhoneTextNormalStyle}"/>
            <TextBlock x:Name="PageTitle" Text="Main Page" Margin="9,-7,0,0" Style="{StaticResource PhoneTextTitle1Style}"/>
        </StackPanel>

        <!--ContentPanel - place additional content here-->
        <StackPanel x:Name="ContentPanel" Grid.Row="1" Margin="12,0,12,0">
            <Button Content="Navigate to Page1" Click="Button_Click"/>
            <!--<Button Content="Navigate to Page2 with Rotation" x:Name="btnRotate" Click="btnRotate_Click"/>-->
        </StackPanel>
    </Grid>

    <!--Sample code showing usage of ApplicationBar-->
    <!--<phone:PhoneApplicationPage.ApplicationBar>
        <shell:ApplicationBar IsVisible="True" IsMenuEnabled="True">
            <shell:ApplicationBarIconButton IconUri="/Images/appbar_button1.png" Text="Button 1"/>
            <shell:ApplicationBarIconButton IconUri="/Images/appbar_button2.png" Text="Button 2"/>
            <shell:ApplicationBar.MenuItems>
                <shell:ApplicationBarMenuItem Text="MenuItem 1"/>
                <shell:ApplicationBarMenuItem Text="MenuItem 2"/>
            </shell:ApplicationBar.MenuItems>
        </shell:ApplicationBar>
    </phone:PhoneApplicationPage.ApplicationBar>-->

</phone:PhoneApplicationPage>


MainPage .xaml.cs


using System;
using System.Collections.Generic;
using System.Linq;
using System.Net;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Animation;
using System.Windows.Shapes;
using Microsoft.Phone.Controls;
using System.Windows.Navigation;

namespace WPtransition
{
    public partial class MainPage : PhoneApplicationPage
    {
        // Constructor
        public MainPage()
        {
            InitializeComponent();
            //NavigationInTransition navigateInTransition = new NavigationInTransition();
            //navigateInTransition.Backward = new SlideTransition { Mode = SlideTransitionMode.SlideDownFadeIn };
            //navigateInTransition.Forward = new SlideTransition { Mode = SlideTransitionMode.SlideUpFadeIn };

            //NavigationOutTransition navigateOutTransition = new NavigationOutTransition();
            //navigateOutTransition.Backward = new SlideTransition { Mode = SlideTransitionMode.SlideDownFadeOut };
            //navigateOutTransition.Forward = new SlideTransition { Mode = SlideTransitionMode.SlideUpFadeOut };
            //TransitionService.SetNavigationInTransition(this, navigateInTransition);
            //TransitionService.SetNavigationOutTransition(this, navigateOutTransition);
        }

        private void StartTransition()
        {
            RotateTransition rotatetransition = new RotateTransition();
            rotatetransition.Mode = RotateTransitionMode.In90Clockwise;

            PhoneApplicationPage phoneApplicationPage =
            (PhoneApplicationPage)(((PhoneApplicationFrame)Application.Current.RootVisual)).Content;

            ITransition transition = rotatetransition.GetTransition(phoneApplicationPage);
            transition.Completed += delegate
            {
                transition.Stop();
            };
            transition.Begin();
        }

        private void Button_Click(object sender, RoutedEventArgs e)
        {
            NavigationService.Navigate(new Uri("/Page1.xaml", UriKind.Relative));
        }

        //protected override void OnNavigatedFrom(NavigationEventArgs e)
        //{
        //    StartTransition();
        //    base.OnNavigatedFrom(e);
        //}


        //private void btnRotate_Click(object sender, RoutedEventArgs e)
        //{
        //    NavigationService.Navigate(new Uri("/Page2.xaml", UriKind.Relative));
        //    StartTransition();
        //}
    }
}

MainPage1 .xaml


<phone:PhoneApplicationPage
    x:Class="WPtransition.Page1"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:phone="clr-namespace:Microsoft.Phone.Controls;assembly=Microsoft.Phone"
    xmlns:shell="clr-namespace:Microsoft.Phone.Shell;assembly=Microsoft.Phone"
    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
    FontFamily="{StaticResource PhoneFontFamilyNormal}"
    FontSize="{StaticResource PhoneFontSizeNormal}"
    Foreground="{StaticResource PhoneForegroundBrush}"
    SupportedOrientations="Portrait" Orientation="Portrait"
    mc:Ignorable="d" d:DesignHeight="768" d:DesignWidth="480"
     xmlns:toolkit="clr-namespace:Microsoft.Phone.Controls;assembly=Microsoft.Phone.Controls.Toolkit"
    shell:SystemTray.IsVisible="True">
    <toolkit:TransitionService.NavigationInTransition>
        <toolkit:NavigationInTransition>
            <toolkit:NavigationInTransition.Backward>
                <toolkit:TurnstileTransition Mode="BackwardIn"/>
            </toolkit:NavigationInTransition.Backward>
            <toolkit:NavigationInTransition.Forward>
                <toolkit:TurnstileTransition Mode="ForwardIn"/>
            </toolkit:NavigationInTransition.Forward>
        </toolkit:NavigationInTransition>
    </toolkit:TransitionService.NavigationInTransition>
    <toolkit:TransitionService.NavigationOutTransition>
        <toolkit:NavigationOutTransition>
            <toolkit:NavigationOutTransition.Backward>
                <toolkit:TurnstileTransition Mode="BackwardOut"/>
            </toolkit:NavigationOutTransition.Backward>
            <toolkit:NavigationOutTransition.Forward>
                <toolkit:TurnstileTransition Mode="ForwardOut"/>
            </toolkit:NavigationOutTransition.Forward>
        </toolkit:NavigationOutTransition>
    </toolkit:TransitionService.NavigationOutTransition>

    <!--LayoutRoot is the root grid where all page content is placed-->
    <Grid x:Name="LayoutRoot" Background="Red">
        <Grid.RowDefinitions>
            <RowDefinition Height="Auto"/>
            <RowDefinition Height="*"/>
        </Grid.RowDefinitions>

        <!--TitlePanel contains the name of the application and page title-->
        <StackPanel x:Name="TitlePanel" Grid.Row="0" Margin="12,17,0,28">
            <TextBlock x:Name="ApplicationTitle" Text="MY APPLICATION" Style="{StaticResource PhoneTextNormalStyle}"/>
            <TextBlock x:Name="PageTitle" Text="Page1" Margin="9,-7,0,0" Style="{StaticResource PhoneTextTitle1Style}"/>
        </StackPanel>

        <!--ContentPanel - place additional content here-->
        <StackPanel x:Name="ContentPanel" Grid.Row="1" Margin="12,0,12,0">
            <Button Content="Navigate To Page2" Click="Button_Click"/>
        </StackPanel>
    </Grid>

    <!--Sample code showing usage of ApplicationBar-->
    <!--<phone:PhoneApplicationPage.ApplicationBar>
        <shell:ApplicationBar IsVisible="True" IsMenuEnabled="True">
            <shell:ApplicationBarIconButton IconUri="/Images/appbar_button1.png" Text="Button 1"/>
            <shell:ApplicationBarIconButton IconUri="/Images/appbar_button2.png" Text="Button 2"/>
            <shell:ApplicationBar.MenuItems>
                <shell:ApplicationBarMenuItem Text="MenuItem 1"/>
                <shell:ApplicationBarMenuItem Text="MenuItem 2"/>
            </shell:ApplicationBar.MenuItems>
        </shell:ApplicationBar>
    </phone:PhoneApplicationPage.ApplicationBar>-->

</phone:PhoneApplicationPage>

MainPage.xaml.cs

using System;

using System.Collections.Generic;

using System.Linq;

using System.Net;

using System.Windows;

using System.Windows.Controls;

using System.Windows.Documents;

using System.Windows.Input;

using System.Windows.Media;

using System.Windows.Media.Animation;

using System.Windows.Shapes;

using Microsoft.Phone.Controls;

using System.Windows.Navigation;

namespace WPtransition

{

    public partial class Page1 : PhoneApplicationPage

    {

        public Page1()

        {

            InitializeComponent();

        }

        private void Button_Click(object sender, RoutedEventArgs e)

        {

            NavigationService.Navigate(new Uri("/Page2.xaml", UriKind.Relative));

        }

        //protected override void OnNavigatedTo(NavigationEventArgs e)

        //{

        //    base.OnNavigatedTo(e);

        //    SlideTransition transition = new SlideTransition();

        //    transition.Mode = SlideTransitionMode.SlideRightFadeIn;

        //    PhoneApplicationPage phonePage = (PhoneApplicationPage)(((PhoneApplicationFrame)Application.Current.RootVisual)).Content;

        //    ITransition trans = transition.GetTransition(phonePage);

        //    trans.Completed += delegate { trans.Stop(); };

        //    trans.Begin();

        //}



    }

}

MainPage2.xaml

<phone:PhoneApplicationPage

    x:Class="WPtransition.Page2"

    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"

    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"

    xmlns:phone="clr-namespace:Microsoft.Phone.Controls;assembly=Microsoft.Phone"

    xmlns:shell="clr-namespace:Microsoft.Phone.Shell;assembly=Microsoft.Phone"

    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"

    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"

    FontFamily="{StaticResource PhoneFontFamilyNormal}"

    FontSize="{StaticResource PhoneFontSizeNormal}"

    Foreground="{StaticResource PhoneForegroundBrush}"

    SupportedOrientations="Portrait" Orientation="Portrait"

    mc:Ignorable="d" d:DesignHeight="768" d:DesignWidth="480"

    xmlns:toolkit="clr-namespace:Microsoft.Phone.Controls;assembly=Microsoft.Phone.Controls.Toolkit"

    shell:SystemTray.IsVisible="True">

<toolkit:TransitionService.NavigationInTransition>

        <toolkit:NavigationInTransition>

            <toolkit:NavigationInTransition.Backward>

                <toolkit:TurnstileTransition Mode="BackwardIn"/>

            </toolkit:NavigationInTransition.Backward>

            <toolkit:NavigationInTransition.Forward>

                <toolkit:TurnstileTransition Mode="ForwardIn"/>

            </toolkit:NavigationInTransition.Forward>

        </toolkit:NavigationInTransition>

    </toolkit:TransitionService.NavigationInTransition>

    <toolkit:TransitionService.NavigationOutTransition>

        <toolkit:NavigationOutTransition>

            <toolkit:NavigationOutTransition.Backward>

                <toolkit:TurnstileTransition Mode="BackwardOut"/>

            </toolkit:NavigationOutTransition.Backward>

            <toolkit:NavigationOutTransition.Forward>

                <toolkit:TurnstileTransition Mode="ForwardOut"/>

            </toolkit:NavigationOutTransition.Forward>

        </toolkit:NavigationOutTransition>

    </toolkit:TransitionService.NavigationOutTransition>

    <!--LayoutRoot is the root grid where all page content is placed-->

    <Grid x:Name="LayoutRoot" Background="Blue">

        <Grid.RowDefinitions>

            <RowDefinition Height="Auto"/>

            <RowDefinition Height="*"/>

        </Grid.RowDefinitions>

        <!--TitlePanel contains the name of the application and page title-->

        <StackPanel x:Name="TitlePanel" Grid.Row="0" Margin="12,17,0,28">

            <TextBlock x:Name="ApplicationTitle" Text="MY APPLICATION" Style="{StaticResource PhoneTextNormalStyle}"/>

            <TextBlock x:Name="PageTitle" Text="Page2" Margin="9,-7,0,0" Style="{StaticResource PhoneTextTitle1Style}"/>

        </StackPanel>

        <!--ContentPanel - place additional content here-->

        <StackPanel x:Name="ContentPanel" Grid.Row="1" Margin="12,0,12,0">

            <Button Content="Navigate To MainPage" Click="Button_Click"/>

        </StackPanel>

    </Grid>



    <!--Sample code showing usage of ApplicationBar-->

    <!--<phone:PhoneApplicationPage.ApplicationBar>

        <shell:ApplicationBar IsVisible="True" IsMenuEnabled="True">

            <shell:ApplicationBarIconButton IconUri="/Images/appbar_button1.png" Text="Button 1"/>

            <shell:ApplicationBarIconButton IconUri="/Images/appbar_button2.png" Text="Button 2"/>

            <shell:ApplicationBar.MenuItems>

                <shell:ApplicationBarMenuItem Text="MenuItem 1"/>

                <shell:ApplicationBarMenuItem Text="MenuItem 2"/>

            </shell:ApplicationBar.MenuItems>

        </shell:ApplicationBar>

    </phone:PhoneApplicationPage.ApplicationBar>-->

</phone:PhoneApplicationPage>

MainPage2.xaml.cs

using System;

using System.Collections.Generic;

using System.Linq;

using System.Net;

using System.Windows;

using System.Windows.Controls;

using System.Windows.Documents;

using System.Windows.Input;

using System.Windows.Media;

using System.Windows.Media.Animation;

using System.Windows.Shapes;

using Microsoft.Phone.Controls;

namespace WPtransition

{

    public partial class Page2 : PhoneApplicationPage

    {

        public Page2()

        {

            InitializeComponent();

        }

        private void Button_Click(object sender, RoutedEventArgs e)

        {

            NavigationService.GoBack();

            //NavigationService.Navigate(new Uri("/MainPage.xaml", UriKind.Relative));

        }

    }

}

Windows Phone image downloading and showing progress-bar

In this blog we will explore how to show download percentage and processing when we start downloading image in Windows Phone 7 application development. i used the image available at

Image location

 it takes some time to download and we can see how it works.  for this purmose make a project with the name ImageDownloader and have code at MainPage.xaml.cs

<phone:PhoneApplicationPage
    x:Class="ImageDownload.MainPage"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:phone="clr-namespace:Microsoft.Phone.Controls;assembly=Microsoft.Phone"
    xmlns:shell="clr-namespace:Microsoft.Phone.Shell;assembly=Microsoft.Phone"
    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
    mc:Ignorable="d" d:DesignWidth="480" d:DesignHeight="768"
    FontFamily="{StaticResource PhoneFontFamilyNormal}"
    FontSize="{StaticResource PhoneFontSizeNormal}"
    Foreground="{StaticResource PhoneForegroundBrush}"
    SupportedOrientations="Portrait" Orientation="Portrait"
    shell:SystemTray.IsVisible="True">

    <!--LayoutRoot is the root grid where all page content is placed-->
    <Grid x:Name="LayoutRoot" Background="Transparent">
        <Grid.RowDefinitions>
            <RowDefinition Height="Auto"/>
            <RowDefinition Height="*"/>
        </Grid.RowDefinitions>

        <!--TitlePanel contains the name of the application and page title-->
        <StackPanel x:Name="TitlePanel" Grid.Row="0" Margin="12,17,0,28">
            <TextBlock x:Name="ApplicationTitle" Text="Download Progress" Style="{StaticResource PhoneTextNormalStyle}"/>
            <TextBlock x:Name="PageTitle" Text="Demo" Margin="9,-7,0,0" Style="{StaticResource PhoneTextTitle1Style}"/>
        </StackPanel>

        <!--ContentPanel - place additional content here-->
        <Grid x:Name="ContentPanel" Grid.Row="1" Margin="12,0,12,0">
            <StackPanel x:Name="stackPanel1" HorizontalAlignment="Center" VerticalAlignment="Center">
                <TextBlock x:Name="downloadPercentage" HorizontalAlignment="Center" VerticalAlignment="Center" />
                <ProgressBar x:Name="progressPercentage" Width="350" Height="25" Minimum="0" Maximum="100" />
                <ProgressBar x:Name="processing" IsIndeterminate="True" Width="350" Height="25" />
            </StackPanel>
            <Border BorderThickness="2" BorderBrush="Silver">
                <Image x:Name="image1">
                    <Image.RenderTransform>
                        <TransformGroup>
                            <ScaleTransform x:Name="scale" />
                            <TranslateTransform x:Name="translate" />
                        </TransformGroup>
                    </Image.RenderTransform>
                </Image>
            </Border>
        </Grid>
    </Grid>

    <!--Sample code showing usage of ApplicationBar-->
    <!--<phone:PhoneApplicationPage.ApplicationBar>
        <shell:ApplicationBar IsVisible="True" IsMenuEnabled="True">
            <shell:ApplicationBarIconButton IconUri="/Images/appbar_button1.png" Text="Button 1"/>
            <shell:ApplicationBarIconButton IconUri="/Images/appbar_button2.png" Text="Button 2"/>
            <shell:ApplicationBar.MenuItems>
                <shell:ApplicationBarMenuItem Text="MenuItem 1"/>
                <shell:ApplicationBarMenuItem Text="MenuItem 2"/>
            </shell:ApplicationBar.MenuItems>
        </shell:ApplicationBar>
    </phone:PhoneApplicationPage.ApplicationBar>-->

</phone:PhoneApplicationPage>

Now have code at MainPage.xaml.cs as follows

using System;
using System.Collections.Generic;
using System.Linq;
using System.Net;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Animation;
using System.Windows.Shapes;
using Microsoft.Phone.Controls;
using System.Windows.Media.Imaging;

namespace ImageDownload
{
    public partial class MainPage : PhoneApplicationPage
    {
        // Constructor
        public MainPage()
        {
            InitializeComponent();
            string source = "http://upload.wikimedia.org/wikipedia/commons/9/96/Naini_Lake_%28After%29.jpg";
            BitmapImage bitmapImage = new BitmapImage(new Uri(source, UriKind.Absolute));
            bitmapImage.DownloadProgress += new EventHandler<DownloadProgressEventArgs>(bitmapImage_DownloadProgress);
            image1.Source = bitmapImage;
        }
        void bitmapImage_DownloadProgress(object sender, DownloadProgressEventArgs e)
        {
            progressPercentage.Value = e.Progress;
            downloadPercentage.Text = "Downloading.... " + e.Progress.ToString() + "%";
        }
    }
}

You can see the output after running the project at emulator

you can also download the code aafter clicking ImageDownloader

Window Phone textbox/passwordbox inputs simple exmple

<TextBox x:Name="Real" Height="75" />

<TextBox InputScope="TelephoneNumber" Height="75" />

<TextBox InputScope="Url" Height="75" />

<TextBox InputScope="Number" Height="75" />

<TextBox InputScope="Text" Height="75" />

            <PasswordBox x:Name="PassBox" PasswordChar="?" />

we can set the constraints as per the given above code line in a textbox/passwordbox  in windows phone.

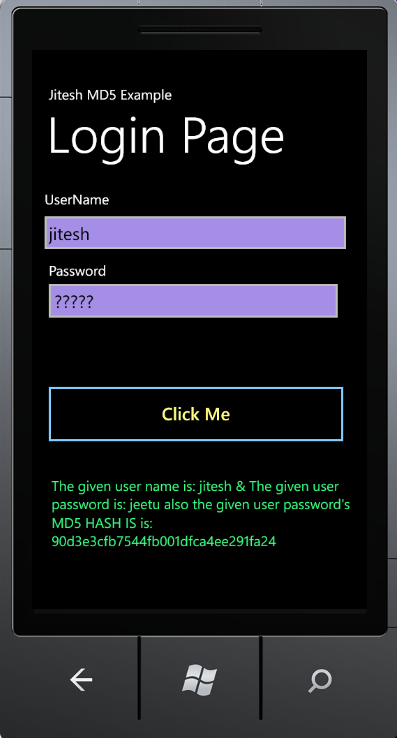

Windows Phone MD5 Hash conversion example

we need a password conversion to MD5 in some case for this example we can make a project with the name Md5Test and  we can have a layout as follows at

MainPage.xaml


<phone:PhoneApplicationPage
    x:Class="Md5Test.MainPage"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:phone="clr-namespace:Microsoft.Phone.Controls;assembly=Microsoft.Phone"
    xmlns:shell="clr-namespace:Microsoft.Phone.Shell;assembly=Microsoft.Phone"
    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
    mc:Ignorable="d" d:DesignWidth="480" d:DesignHeight="768"
    FontFamily="{StaticResource PhoneFontFamilyNormal}"
    FontSize="{StaticResource PhoneFontSizeNormal}"
    Foreground="{StaticResource PhoneForegroundBrush}"
    SupportedOrientations="Portrait" Orientation="Portrait"
    shell:SystemTray.IsVisible="True">

    <!--LayoutRoot is the root grid where all page content is placed-->
    <Grid x:Name="LayoutRoot" Background="Transparent">
        <Grid.RowDefinitions>
            <RowDefinition Height="Auto"/>
            <RowDefinition Height="*"/>
        </Grid.RowDefinitions>

        <!--TitlePanel contains the name of the application and page title-->
        <StackPanel x:Name="TitlePanel" Grid.Row="0" Margin="12,17,0,28">
            <TextBlock x:Name="ApplicationTitle" Text="Jitesh MD5 Example" Style="{StaticResource PhoneTextNormalStyle}"/>
            <TextBlock x:Name="PageTitle" Text="Login Page" Margin="9,-7,0,0" Style="{StaticResource PhoneTextTitle1Style}"/>
        </StackPanel>

        <!--ContentPanel - place additional content here-->
        <Grid x:Name="ContentPanel" Grid.Row="1" Margin="12,0,12,0">

            <TextBlock Height="30" HorizontalAlignment="Left" Margin="6,6,0,0" Name="textBlock1" Text="UserName" VerticalAlignment="Top" Width="440" />
            <TextBox x:Name="usernametextfield" Margin="-6,33,6,503"  Background="#FDA590E6"  />
            <TextBlock Height="30" HorizontalAlignment="Left" Margin="12,108,0,0" Name="textBlock2" Text="Password" VerticalAlignment="Top" Width="434" TextWrapping="Wrap" />
            <PasswordBox x:Name="passweordtextdield" PasswordChar="?" Height="72"  Background="#FDA590E6" HorizontalAlignment="Left" Margin="0,130,0,0"  VerticalAlignment="Top" Width="438" />

            <Button Click="button1_Click" VerticalContentAlignment="Center"  Content="Click Me" Name="button"  Height="102" Margin="0,277,10,228" Background="#00FF4369" BorderBrush="#FF82CDFF" Foreground="#FFFFFF82" />
            <TextBlock x:Name="Md5DATA" Text="MD5 DATA CONVERSION" Foreground="#FF38FF82"  Margin="16,416,4,59" TextWrapping="Wrap" />


        </Grid>
    </Grid>

    <!--Sample code showing usage of ApplicationBar-->
    <!--<phone:PhoneApplicationPage.ApplicationBar>
        <shell:ApplicationBar IsVisible="True" IsMenuEnabled="True">
            <shell:ApplicationBarIconButton IconUri="/Images/appbar_button1.png" Text="Button 1"/>
            <shell:ApplicationBarIconButton IconUri="/Images/appbar_button2.png" Text="Button 2"/>
            <shell:ApplicationBar.MenuItems>
                <shell:ApplicationBarMenuItem Text="MenuItem 1"/>
                <shell:ApplicationBarMenuItem Text="MenuItem 2"/>
            </shell:ApplicationBar.MenuItems>
        </shell:ApplicationBar>
    </phone:PhoneApplicationPage.ApplicationBar>-->

</phone:PhoneApplicationPage>

and correspondinglt the MainPage.xaml.cs code is as given below

MainPage.xaml.cs


using System;
using System.Collections.Generic;
using System.Linq;
using System.Net;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Animation;
using System.Windows.Shapes;
using Microsoft.Phone.Controls;

namespace Md5Test
{
    public partial class MainPage : PhoneApplicationPage
    {
        // Constructor
        public MainPage()
        {
            InitializeComponent();

        }
        void button1_Click(object sender, RoutedEventArgs e)
        {


            String hash = MD5CryptoServiceProvider.GetMd5String(passweordtextdield.Password);
            Md5DATA.Text = "The given user name is: " + usernametextfield.Text +" & "+"The given user password is: "+passweordtextdield.Password+ " also the given user password's MD5 HASH IS is: "
            +hash;

        }
    }
}


the most importan part of this project is Md5.cs class the code is given below





using System;
using System.IO;
using System.Text;

namespace Md5Test
{
    public class MD5CryptoServiceProvider : MD5
    {
        public MD5CryptoServiceProvider()
            : base()
        {
        }
    }

    public class MD5 : IDisposable
    {
        static public MD5 Create(string hashName)
        {
            if (hashName == "MD5")
                return new MD5();
            else
                throw new NotSupportedException();
        }

        static public string GetMd5String(String source)
        {
            MD5 md = MD5CryptoServiceProvider.Create();
            byte[] hash;

            //Create a new instance of ASCIIEncoding to
            //convert the string into an array of Unicode bytes.
            UTF8Encoding enc = new UTF8Encoding();
            //            ASCIIEncoding enc = new ASCIIEncoding();

            //Convert the string into an array of bytes.
            byte[] buffer = enc.GetBytes(source);

            //Create the hash value from the array of bytes.
            hash = md.ComputeHash(buffer);

            StringBuilder sb = new StringBuilder();
            foreach (byte b in hash)
                sb.Append(b.ToString("x2"));
            return sb.ToString();
        }

        static public MD5 Create()
        {
            return new MD5();
        }

        #region base implementation of the MD5
        #region constants
        private const byte S11 = 7;
        private const byte S12 = 12;
        private const byte S13 = 17;
        private const byte S14 = 22;
        private const byte S21 = 5;
        private const byte S22 = 9;
        private const byte S23 = 14;
        private const byte S24 = 20;
        private const byte S31 = 4;
        private const byte S32 = 11;
        private const byte S33 = 16;
        private const byte S34 = 23;
        private const byte S41 = 6;
        private const byte S42 = 10;
        private const byte S43 = 15;
        private const byte S44 = 21;
        static private byte[] PADDING = new byte[] {
0x80, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0,
0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0,
0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0
};
        #endregion

        #region F, G, H and I are basic MD5 functions.
        static private uint F(uint x, uint y, uint z)
        {
            return (((x) & (y)) | ((~x) & (z)));
        }
        static private uint G(uint x, uint y, uint z)
        {
            return (((x) & (z)) | ((y) & (~z)));
        }
        static private uint H(uint x, uint y, uint z)
        {
            return ((x) ^ (y) ^ (z));
        }
        static private uint I(uint x, uint y, uint z)
        {
            return ((y) ^ ((x) | (~z)));
        }
        #endregion

        #region rotates x left n bits.
        /// <summary>
        /// rotates x left n bits.
        /// </summary>
        /// <param name="x"></param>
        /// <param name="n"></param>
        /// <returns></returns>
        static private uint ROTATE_LEFT(uint x, byte n)
        {
            return (((x) << (n)) | ((x) >> (32 - (n))));
        }
        #endregion

        #region FF, GG, HH, and II transformations
        /// FF, GG, HH, and II transformations
        /// for rounds 1, 2, 3, and 4.
        /// Rotation is separate from addition to prevent recomputation.
        static private void FF(ref uint a, uint b, uint c, uint d, uint x, byte s, uint ac)
        {
            (a) += F((b), (c), (d)) + (x) + (uint)(ac);
            (a) = ROTATE_LEFT((a), (s));
            (a) += (b);
        }
        static private void GG(ref uint a, uint b, uint c, uint d, uint x, byte s, uint ac)
        {
            (a) += G((b), (c), (d)) + (x) + (uint)(ac);
            (a) = ROTATE_LEFT((a), (s));
            (a) += (b);
        }
        static private void HH(ref uint a, uint b, uint c, uint d, uint x, byte s, uint ac)
        {
            (a) += H((b), (c), (d)) + (x) + (uint)(ac);
            (a) = ROTATE_LEFT((a), (s));
            (a) += (b);
        }
        static private void II(ref uint a, uint b, uint c, uint d, uint x, byte s, uint ac)
        {
            (a) += I((b), (c), (d)) + (x) + (uint)(ac);
            (a) = ROTATE_LEFT((a), (s));
            (a) += (b);
        }
        #endregion

        #region context info
        /// <summary>
        /// state (ABCD)
        /// </summary>
        uint[] state = new uint[4];

        /// <summary>
        /// number of bits, modulo 2^64 (lsb first)
        /// </summary>
        uint[] count = new uint[2];

        /// <summary>
        /// input buffer
        /// </summary>
        byte[] buffer = new byte[64];
        #endregion

        internal MD5()
        {
            Initialize();
        }

        /// <summary>
        /// MD5 initialization. Begins an MD5 operation, writing a new context.
        /// </summary>
        /// <remarks>
        /// The RFC named it "MD5Init"
        /// </remarks>
        public virtual void Initialize()
        {
            count[0] = count[1] = 0;

            // Load magic initialization constants.
            state[0] = 0x67452301;
            state[1] = 0xefcdab89;
            state[2] = 0x98badcfe;
            state[3] = 0x10325476;
        }

        /// <summary>
        /// MD5 block update operation. Continues an MD5 message-digest
        /// operation, processing another message block, and updating the
        /// context.
        /// </summary>
        /// <param name="input"></param>
        /// <param name="offset"></param>
        /// <param name="count"></param>
        /// <remarks>The RFC Named it MD5Update</remarks>
        protected virtual void HashCore(byte[] input, int offset, int count)
        {
            int i;
            int index;
            int partLen;

            // Compute number of bytes mod 64
            index = (int)((this.count[0] >> 3) & 0x3F);

            // Update number of bits
            if ((this.count[0] += (uint)((uint)count << 3)) < ((uint)count << 3))
                this.count[1]++;
            this.count[1] += ((uint)count >> 29);

            partLen = 64 - index;

            // Transform as many times as possible.
            if (count >= partLen)
            {
                Buffer.BlockCopy(input, offset, this.buffer, index, partLen);
                Transform(this.buffer, 0);

                for (i = partLen; i + 63 < count; i += 64)
                    Transform(input, offset + i);

                index = 0;
            }
            else
                i = 0;

            // Buffer remaining input
            Buffer.BlockCopy(input, offset + i, this.buffer, index, count - i);
        }

        /// <summary>
        /// MD5 finalization. Ends an MD5 message-digest operation, writing the
        /// the message digest and zeroizing the context.
        /// </summary>
        /// <returns>message digest</returns>
        /// <remarks>The RFC named it MD5Final</remarks>
        protected virtual byte[] HashFinal()
        {
            byte[] digest = new byte[16];
            byte[] bits = new byte[8];
            int index, padLen;

            // Save number of bits
            Encode(bits, 0, this.count, 0, 8);

            // Pad out to 56 mod 64.
            index = (int)((uint)(this.count[0] >> 3) & 0x3f);
            padLen = (index < 56) ? (56 - index) : (120 - index);
            HashCore(PADDING, 0, padLen);

            // Append length (before padding)
            HashCore(bits, 0, 8);

            // Store state in digest
            Encode(digest, 0, state, 0, 16);

            // Zeroize sensitive information.
            count[0] = count[1] = 0;
            state[0] = 0;
            state[1] = 0;
            state[2] = 0;
            state[3] = 0;

            // initialize again, to be ready to use
            Initialize();

            return digest;
        }

        /// <summary>
        /// MD5 basic transformation. Transforms state based on 64 bytes block.
        /// </summary>
        /// <param name="block"></param>
        /// <param name="offset"></param>
        private void Transform(byte[] block, int offset)
        {
            uint a = state[0], b = state[1], c = state[2], d = state[3];
            uint[] x = new uint[16];
            Decode(x, 0, block, offset, 64);

            // Round 1
            FF(ref a, b, c, d, x[0], S11, 0xd76aa478); /* 1 */
            FF(ref d, a, b, c, x[1], S12, 0xe8c7b756); /* 2 */
            FF(ref c, d, a, b, x[2], S13, 0x242070db); /* 3 */
            FF(ref b, c, d, a, x[3], S14, 0xc1bdceee); /* 4 */
            FF(ref a, b, c, d, x[4], S11, 0xf57c0faf); /* 5 */
            FF(ref d, a, b, c, x[5], S12, 0x4787c62a); /* 6 */
            FF(ref c, d, a, b, x[6], S13, 0xa8304613); /* 7 */
            FF(ref b, c, d, a, x[7], S14, 0xfd469501); /* 8 */
            FF(ref a, b, c, d, x[8], S11, 0x698098d8); /* 9 */
            FF(ref d, a, b, c, x[9], S12, 0x8b44f7af); /* 10 */
            FF(ref c, d, a, b, x[10], S13, 0xffff5bb1); /* 11 */
            FF(ref b, c, d, a, x[11], S14, 0x895cd7be); /* 12 */
            FF(ref a, b, c, d, x[12], S11, 0x6b901122); /* 13 */
            FF(ref d, a, b, c, x[13], S12, 0xfd987193); /* 14 */
            FF(ref c, d, a, b, x[14], S13, 0xa679438e); /* 15 */
            FF(ref b, c, d, a, x[15], S14, 0x49b40821); /* 16 */

            // Round 2
            GG(ref a, b, c, d, x[1], S21, 0xf61e2562); /* 17 */
            GG(ref d, a, b, c, x[6], S22, 0xc040b340); /* 18 */
            GG(ref c, d, a, b, x[11], S23, 0x265e5a51); /* 19 */
            GG(ref b, c, d, a, x[0], S24, 0xe9b6c7aa); /* 20 */
            GG(ref a, b, c, d, x[5], S21, 0xd62f105d); /* 21 */
            GG(ref d, a, b, c, x[10], S22, 0x2441453); /* 22 */
            GG(ref c, d, a, b, x[15], S23, 0xd8a1e681); /* 23 */
            GG(ref b, c, d, a, x[4], S24, 0xe7d3fbc8); /* 24 */
            GG(ref a, b, c, d, x[9], S21, 0x21e1cde6); /* 25 */
            GG(ref d, a, b, c, x[14], S22, 0xc33707d6); /* 26 */
            GG(ref c, d, a, b, x[3], S23, 0xf4d50d87); /* 27 */
            GG(ref b, c, d, a, x[8], S24, 0x455a14ed); /* 28 */
            GG(ref a, b, c, d, x[13], S21, 0xa9e3e905); /* 29 */
            GG(ref d, a, b, c, x[2], S22, 0xfcefa3f8); /* 30 */
            GG(ref c, d, a, b, x[7], S23, 0x676f02d9); /* 31 */
            GG(ref b, c, d, a, x[12], S24, 0x8d2a4c8a); /* 32 */

            // Round 3
            HH(ref a, b, c, d, x[5], S31, 0xfffa3942); /* 33 */
            HH(ref d, a, b, c, x[8], S32, 0x8771f681); /* 34 */
            HH(ref c, d, a, b, x[11], S33, 0x6d9d6122); /* 35 */
            HH(ref b, c, d, a, x[14], S34, 0xfde5380c); /* 36 */
            HH(ref a, b, c, d, x[1], S31, 0xa4beea44); /* 37 */
            HH(ref d, a, b, c, x[4], S32, 0x4bdecfa9); /* 38 */
            HH(ref c, d, a, b, x[7], S33, 0xf6bb4b60); /* 39 */
            HH(ref b, c, d, a, x[10], S34, 0xbebfbc70); /* 40 */
            HH(ref a, b, c, d, x[13], S31, 0x289b7ec6); /* 41 */
            HH(ref d, a, b, c, x[0], S32, 0xeaa127fa); /* 42 */
            HH(ref c, d, a, b, x[3], S33, 0xd4ef3085); /* 43 */
            HH(ref b, c, d, a, x[6], S34, 0x4881d05); /* 44 */
            HH(ref a, b, c, d, x[9], S31, 0xd9d4d039); /* 45 */
            HH(ref d, a, b, c, x[12], S32, 0xe6db99e5); /* 46 */
            HH(ref c, d, a, b, x[15], S33, 0x1fa27cf8); /* 47 */
            HH(ref b, c, d, a, x[2], S34, 0xc4ac5665); /* 48 */

            // Round 4
            II(ref a, b, c, d, x[0], S41, 0xf4292244); /* 49 */
            II(ref d, a, b, c, x[7], S42, 0x432aff97); /* 50 */
            II(ref c, d, a, b, x[14], S43, 0xab9423a7); /* 51 */
            II(ref b, c, d, a, x[5], S44, 0xfc93a039); /* 52 */
            II(ref a, b, c, d, x[12], S41, 0x655b59c3); /* 53 */
            II(ref d, a, b, c, x[3], S42, 0x8f0ccc92); /* 54 */
            II(ref c, d, a, b, x[10], S43, 0xffeff47d); /* 55 */
            II(ref b, c, d, a, x[1], S44, 0x85845dd1); /* 56 */
            II(ref a, b, c, d, x[8], S41, 0x6fa87e4f); /* 57 */
            II(ref d, a, b, c, x[15], S42, 0xfe2ce6e0); /* 58 */
            II(ref c, d, a, b, x[6], S43, 0xa3014314); /* 59 */
            II(ref b, c, d, a, x[13], S44, 0x4e0811a1); /* 60 */
            II(ref a, b, c, d, x[4], S41, 0xf7537e82); /* 61 */
            II(ref d, a, b, c, x[11], S42, 0xbd3af235); /* 62 */
            II(ref c, d, a, b, x[2], S43, 0x2ad7d2bb); /* 63 */
            II(ref b, c, d, a, x[9], S44, 0xeb86d391); /* 64 */

            state[0] += a;
            state[1] += b;
            state[2] += c;
            state[3] += d;

            // Zeroize sensitive information.
            for (int i = 0; i < x.Length; i++)
                x[i] = 0;
        }

        /// <summary>
        /// Encodes input (uint) into output (byte). Assumes len is
        ///  multiple of 4.
        /// </summary>
        /// <param name="output"></param>
        /// <param name="outputOffset"></param>
        /// <param name="input"></param>
        /// <param name="inputOffset"></param>
        /// <param name="count"></param>
        private static void Encode(byte[] output, int outputOffset, uint[] input, int inputOffset, int count)
        {
            int i, j;
            int end = outputOffset + count;
            for (i = inputOffset, j = outputOffset; j < end; i++, j += 4)
            {
                output[j] = (byte)(input[i] & 0xff);
                output[j + 1] = (byte)((input[i] >> 8) & 0xff);
                output[j + 2] = (byte)((input[i] >> 16) & 0xff);
                output[j + 3] = (byte)((input[i] >> 24) & 0xff);
            }
        }

        /// <summary>
        /// Decodes input (byte) into output (uint). Assumes len is
        /// a multiple of 4.
        /// </summary>
        /// <param name="output"></param>
        /// <param name="outputOffset"></param>
        /// <param name="input"></param>
        /// <param name="inputOffset"></param>
        /// <param name="count"></param>
        static private void Decode(uint[] output, int outputOffset, byte[] input, int inputOffset, int count)
        {
            int i, j;
            int end = inputOffset + count;
            for (i = outputOffset, j = inputOffset; j < end; i++, j += 4)
                output[i] = ((uint)input[j]) | (((uint)input[j + 1]) << 8) | (((uint)input[j + 2]) << 16) | (((uint)input[j + 3]) << 24);
        }
        #endregion

        #region expose the same interface as the regular MD5 object

        protected byte[] HashValue;
        protected int State;
        public virtual bool CanReuseTransform
        {
            get
            {
                return true;
            }
        }

        public virtual bool CanTransformMultipleBlocks
        {
            get
            {
                return true;
            }
        }
        public virtual byte[] Hash
        {
            get
            {
                if (this.State != 0)
                    throw new InvalidOperationException();
                return (byte[])HashValue.Clone();
            }
        }
        public virtual int HashSize
        {
            get
            {
                return HashSizeValue;
            }
        }
        protected int HashSizeValue = 128;

        public virtual int InputBlockSize
        {
            get
            {
                return 1;
            }
        }
        public virtual int OutputBlockSize
        {
            get
            {
                return 1;
            }
        }

        public void Clear()
        {
            Dispose(true);
        }

        public byte[] ComputeHash(byte[] buffer)
        {
            return ComputeHash(buffer, 0, buffer.Length);
        }
        public byte[] ComputeHash(byte[] buffer, int offset, int count)
        {
            Initialize();
            HashCore(buffer, offset, count);
            HashValue = HashFinal();
            return (byte[])HashValue.Clone();
        }

        public byte[] ComputeHash(Stream inputStream)
        {
            Initialize();
            int count;
            byte[] buffer = new byte[4096];
            while (0 < (count = inputStream.Read(buffer, 0, 4096)))
            {
                HashCore(buffer, 0, count);
            }
            HashValue = HashFinal();
            return (byte[])HashValue.Clone();
        }

        public int TransformBlock(
            byte[] inputBuffer,
            int inputOffset,
            int inputCount,
            byte[] outputBuffer,
            int outputOffset
            )
        {
            if (inputBuffer == null)
            {
                throw new ArgumentNullException("inputBuffer");
            }
            if (inputOffset < 0)
            {
                throw new ArgumentOutOfRangeException("inputOffset");
            }
            if ((inputCount < 0) || (inputCount > inputBuffer.Length))
            {
                throw new ArgumentException("inputCount");
            }
            if ((inputBuffer.Length - inputCount) < inputOffset)
            {
                throw new ArgumentOutOfRangeException("inputOffset");
            }
            if (this.State == 0)
            {
                Initialize();
                this.State = 1;
            }

            HashCore(inputBuffer, inputOffset, inputCount);
            if ((inputBuffer != outputBuffer) || (inputOffset != outputOffset))
            {
                Buffer.BlockCopy(inputBuffer, inputOffset, outputBuffer, outputOffset, inputCount);
            }
            return inputCount;
        }
        public byte[] TransformFinalBlock(
            byte[] inputBuffer,
            int inputOffset,
            int inputCount
            )
        {
            if (inputBuffer == null)
            {
                throw new ArgumentNullException("inputBuffer");
            }
            if (inputOffset < 0)
            {
                throw new ArgumentOutOfRangeException("inputOffset");
            }
            if ((inputCount < 0) || (inputCount > inputBuffer.Length))
            {
                throw new ArgumentException("inputCount");
            }
            if ((inputBuffer.Length - inputCount) < inputOffset)
            {
                throw new ArgumentOutOfRangeException("inputOffset");
            }
            if (this.State == 0)
            {
                Initialize();
            }
            HashCore(inputBuffer, inputOffset, inputCount);
            HashValue = HashFinal();
            byte[] buffer = new byte[inputCount];
            Buffer.BlockCopy(inputBuffer, inputOffset, buffer, 0, inputCount);
            this.State = 0;
            return buffer;
        }
        #endregion

        protected virtual void Dispose(bool disposing)
        {
            if (!disposing)
                Initialize();
        }
        public void Dispose()
        {
            Dispose(true);
        }
    }
}

after running the program successfully you can see the outputs as follows
